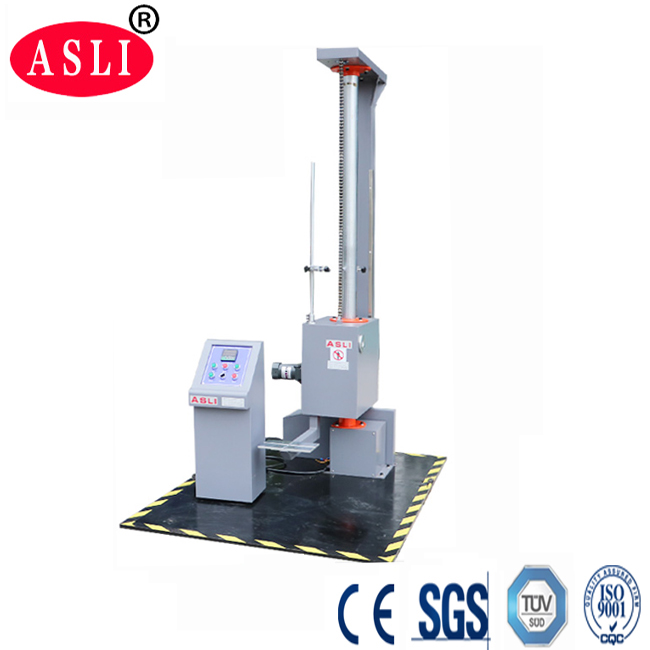

Free Falling Drop Package bag carton box drop impact test machine
for Packaging Industry
Application:
Free Falling Drop Package bag carton box drop impact test machine for Packaging Industry is applied to assess the package in the actual transportation, loading and unloading process by dropping the degree of impact, impact-resistant strength and evaluate the reasonable of packaging design.
Feature:
1. The main axle of tester used dual axle rode, high precision and good stability. Power failure safety design, it will be kept the original condition under power cut and the swing arm will not break away unusually.
2. The tester has set limits upward and down, will not exceed safety range when testing.
3. Support arm with electronic reset capability, can avoid the accident by manual operation.
4. Multi-functional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners.
5. Micro adjusting control, can rapidly set to the needed testing height.
Technical Parameters:
| Model | AS-DT-120 | AS-DT-150 | AS-DT-200 |
| Max. Weight of Test
Samples (Kg) | ≥200 | 100 | 100 |
| Height of Drop (mm) | 0~1200 | 300~1500 | 300~2000 |
| Max. Dimension of
Test Sample WxHxD (mm) | 1200x1200x1200 | 1000x800x1000 | 1000x800x1000 |
| Falling Floor Size WxHxD (mm) | 1400x50x2000 | 1700x50x1200 | 1700x50x1200 |
| Drop Method | Face, edge, angle |
| Test Bench External
Dimension WxHxD (mm) | 1400x2000x1800 | 1700x2700x1200 | 1700x2700x1200 |
| Weight (Kg) | 1500 | 600 | 700 |
| Power | AC 380V |

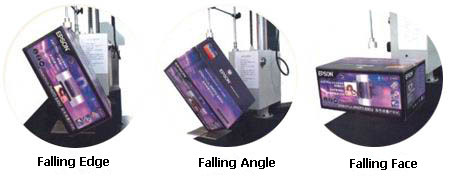

Drop Method:

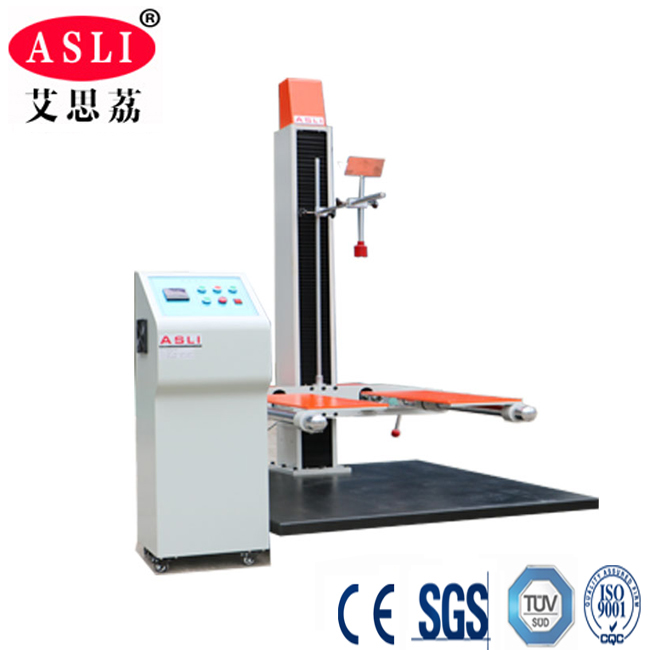

AS-DT-150 Packaging Drop Test Feature:
1. The main axle of tester used dual axle rode, high precision and good stability. Power failure safety design, it will be kept the original condition under power cut and the swing arm will not break away unusually.
2. The tester has set limits upward and down, will not exceed safety range when testing.
3. Support arm with electronic reset capability, can avoid the accident by manual operation.
4. Multi-functional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners.
5. Micro adjusting control, can rapidly set to the needed testing height.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Certificate of these the machine:
China official 3rd party calibration report
CE certiification
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.AS-DT-150 Packaging Drop Test, Hammer Impact Tester, Packaging Drop Testing Machine is one of our star product , and we had obtained the CE certification for this machine .
For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
ASLi main products: Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability
