Computer Control Electronic Automatic Universal Testing Machine Tensile Test

Name: Computer Control Electronic Automatic Universal Testing Machine Tensile Test
Brand: ASLI
Price: 1 USD

Computer Control Electronic Automatic Universal Testing Machine Tensile Test Manufactures

Brand Name : ASLI

Model Number : AS-PC-5000

Certification : CE, ISO , SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 20 workdays

Packaging Details : wooden case

Capacity : 50~20000kg

Load Accuracy : Load Accuracy 0.5%

Load Resolution : 1/100,000

Valid Width : 400mm

Test Speed : 0.1~500(1000) mm

Speed Accuracy : +/-0.5%

control method : computer control

Contact Now

computer control electronic automatic universal testing machine tensile test

Application:

Tensile Stress Relaxation Testing Machine is an electrically operated machine that is used for testing tensile strength And elongation of materials like plywood, wires, cables, conductors, ferrous and non-ferrous materials.

Technical Parameters
Model	AS-PC- Volume
Capacity (Kg)	50,100,200,500,1000,2000,5000,10000,20000
Load Accuracy	0.5%
Load Resolution	1/100,000
Valid Width (mm)	400
Max. Route (mm)	1000(not including clamp)
Test Speed (mm/Min.)	0.1~500(1000)
Speed Accuracy	±0.5%
Motor	AC servo motor
Volume WxHxD (mm)	1750x3310x1220
Weight (Kg)	300
Power	AC220V 1 phase 3 lines

Pictures for reference:

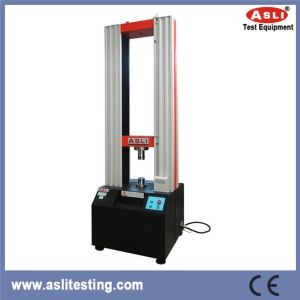

Computer Control Electronic Automatic Universal Testing Machine Tensile Test

Tensile Testing Machine Features:

1. Force value and deformation can display at the same time.
2. Drive by servo motor, stand-alone can sent testing speed directly.
3. Press Start button the machine will testing automatic after setting.
4. After finishing testing, it can self-return.
5. Fast disassembly joint, can use different kinds grips.
6. Single button testing function, easy operation
7. Direct-connected to printer, print out report.

Please feel free to contact us if any doubt or needs about computer control electronic automatic universal testing machine tensile test.
